3D product configurator examples

3D configurator examples for complex products.

We specialize in complex products. Explore how Configurix can build a custom 3D configurator and business or factory software around your catalogue, rules and sales process. Follow the choices through pricing, quotes, materials and the next team's work.

Discuss your product
Product examples · 17

Product choices

Industrial equipment configurator

Quotation

Base equipment, configured modules, engineering options, controls, documentation, commissioning, freight and service can follow account and market rules.

Operations

Versioned product specification, selected components, commercial calculation, proposal, approval status and optional configured-order or BOM payload.

The product is the starting point.

Model your real product

Connect dimensions, modules, materials and accessories to rules your team can explain and test.

Keep choices and calculations together

Use the accepted configuration for visual changes, account pricing, saved specifications and traceable quotations.

Connect sales and factory work

Build qualification, calendars, appointments, BOM, orders, jobs and invoicing around the same product record.

Follow one industry through the workflow.

Choose a category and product. Compare its choices, rule checks, visual behaviour and required business output. Open its full industry guide below.

Visual CPQ workflow

Connects the valid configuration to price lists, formulas, account rules, quote documents, approvals, revisions and handoff to the next sales or operational system.

Industrial manufacturing

Industrial equipment configurator

Validate
Performance ranges, interfaces, required components, incompatible options, regional electrical packages and review conditions must be explicit and versioned.
Calculate
Base equipment, configured modules, engineering options, controls, documentation, commissioning, freight and service can follow account and market rules.
Business output
Versioned product specification, selected components, commercial calculation, proposal, approval status and optional configured-order or BOM payload.
Open this industry's details

Define your requirements

Visual customizer

Changes visible finishes, colours or prepared components on a standard product. It helps a buyer understand choice, but may not validate a made-to-measure product or calculate a commercial result.

Interactive 3D viewer

Adds rotation, zoom, hotspots, animation or optional AR to a prepared model. It is useful for product education when the buyer is inspecting rather than defining the product.

Rule-driven configurator

Creates a permitted product from dimensions, structures, modules, materials, accessories, dependencies and exclusions. The saved result is structured data, not only a picture.

Visual CPQ workflow

Connects the valid configuration to price lists, formulas, account rules, quote documents, approvals, revisions and handoff to the next sales or operational system.

Explore the product library.

Each product has its own choices, rules and delivery process. Open an industry to review pricing, customer action, structured output and a useful boundary test.

3D view of an anthracite pergola attached to a house, with louvres, glass sides and lighting.

Outdoor structures

Bioclimatic pergola configurator

Width, projection, height, wall-mounted or freestanding structure, roof zones, louvre orientation, posts, gutters, screens, sliding glass, lighting, heating and frame finish.

Open this industry's details
Validate
Dimension limits depend on the selected system and bay count. Screens need a supported opening, glass needs a compatible track, accessories require electrical or structural conditions and linked roof zones must remain buildable.
Visualize
The 3D model should change its frame, posts, roof blades, bay layout, side closures, lighting and finish while keeping the configured dimensions visually consistent.
Calculate
Base system plus dimensional formulas, bay quantities, posts, roof mechanisms, side products, finish surcharges, installation, delivery and tax according to the market and user role.
Customer action
Save the design, request a quote, continue with a salesperson, review it in AR or create a proposal, depending on the sales journey.
Business output
A project record with dimensions, selected system, accessories, price revision, images, quote lines and optional bill-of-materials or order data defined in scope.
Boundary test
Reduce the width after adding two roof zones and side glass. The system should explain which parts no longer fit, not silently keep an invalid selection.
Explore this product guide

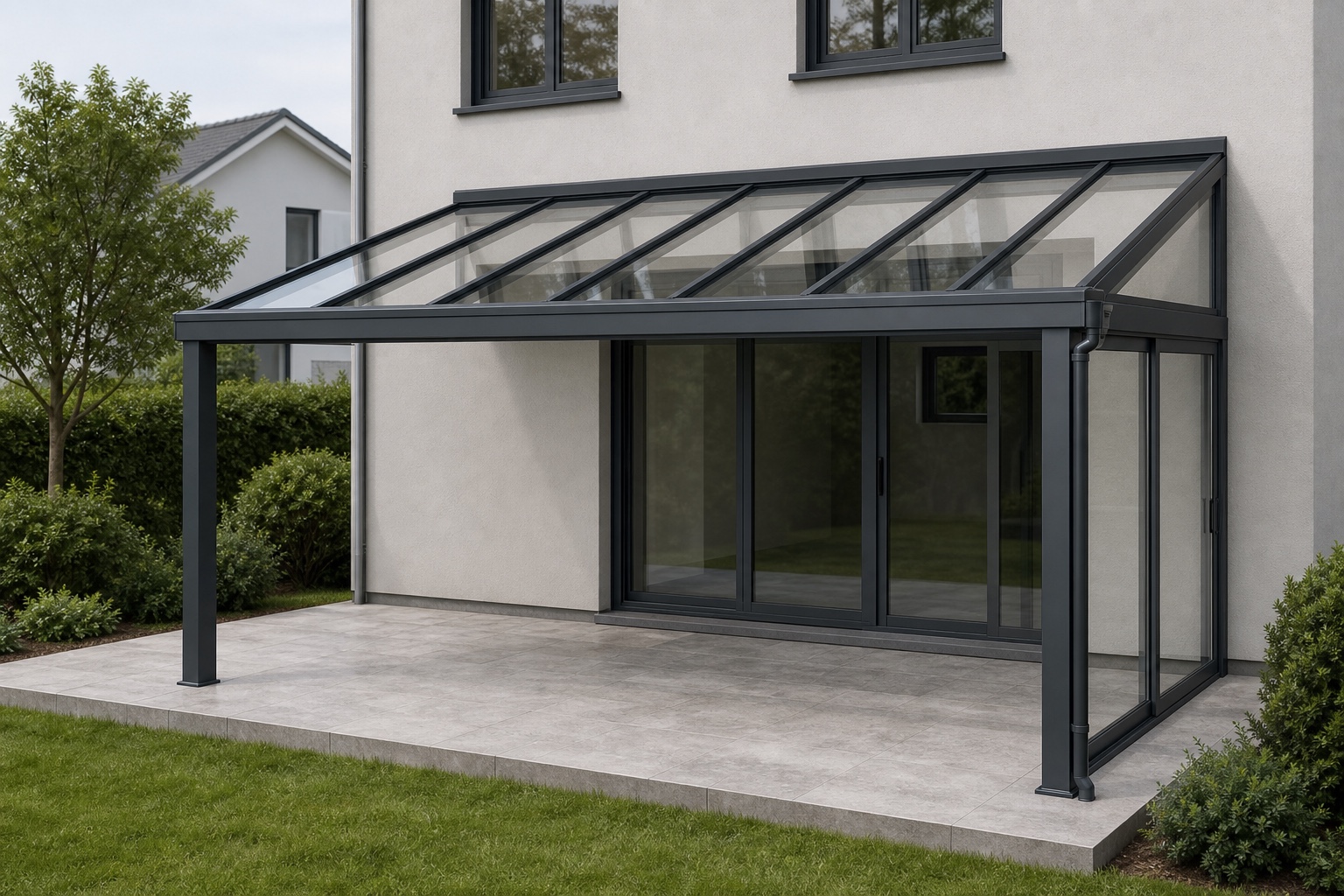

3D view of a framed veranda with a glazed roof and sliding glass walls.

Outdoor structures

Glass veranda and roof configurator

Overall width, projection, wall height, front height, roof pitch, post positions, frame finish, glass specification, gutter, lighting, fixed sides and sliding-door panels.

Open this industry's details
Validate
Pitch, span, glass panel widths, post spacing, drainage and door openings must stay inside the selected system limits. A side wall or door set must match the actual opening geometry.
Visualize
Roof slope, rafters, glazing panels, posts and side enclosures should update in one coherent model, including transparent materials and useful inspection camera views.
Calculate
Frame dimensions, rafter and glass quantities, side elevations, doors, finish, accessories, survey, delivery and installation can feed one calculation with market-specific taxes.
Customer action
Request a measured survey, save a preliminary design or issue a quote clearly marked with the assumptions that still require site verification.
Business output
Configured elevations, dimensions, selected glass and frame system, price, proposal imagery and the fields needed for survey or technical review.
Boundary test
Move an intermediate post and add a sliding door. Confirm the panel division, opening width, visual model, price and saved specification all change together.
Explore this product guide

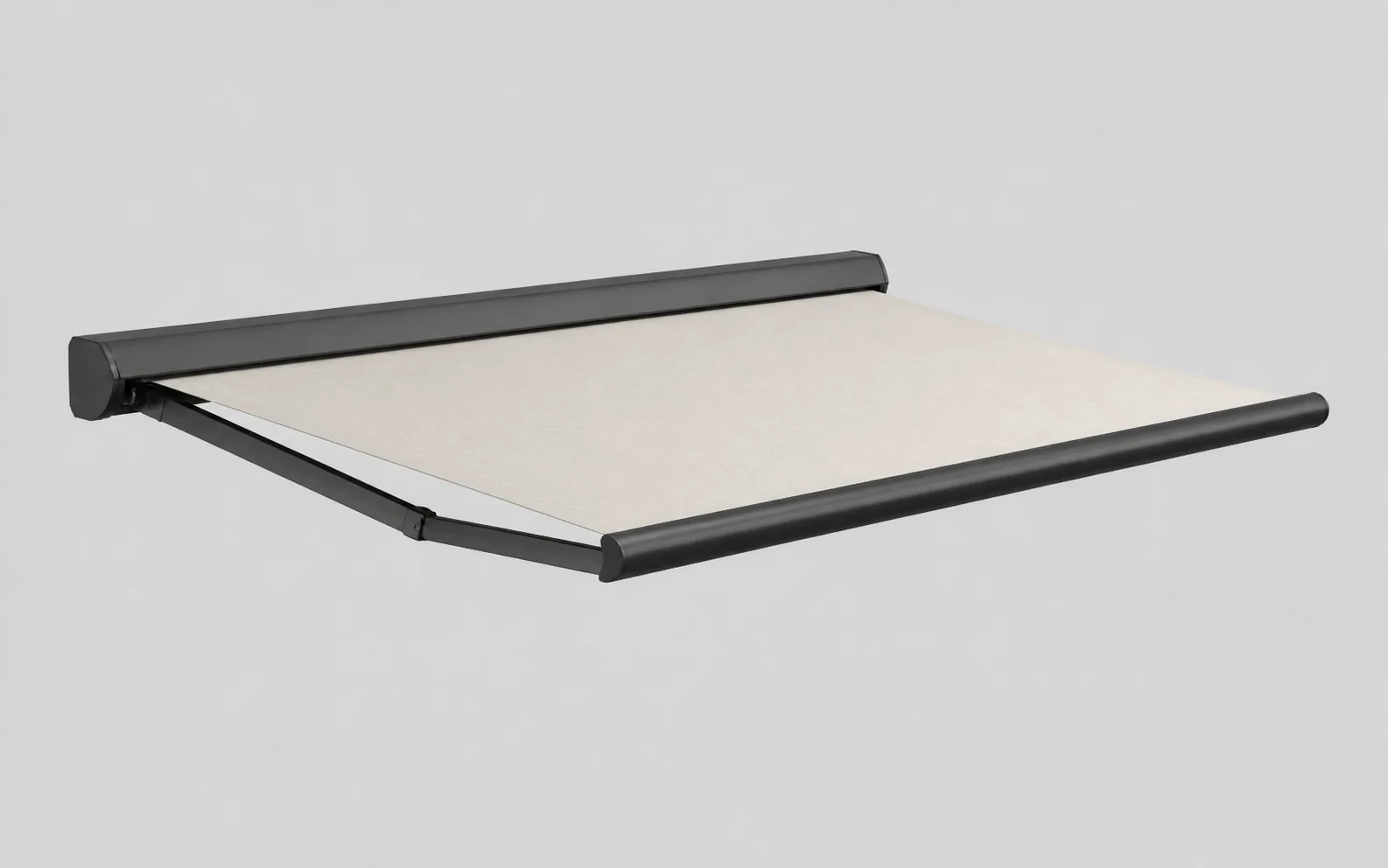

Extended cream-fabric awning with dark folding arms above a terrace in a 3D view.

Shading

Retractable awning configurator

Awning family, width, projection, cassette, arm type, frame colour, fabric collection, valance, motor, controls, wind sensor, lighting and mounting condition.

Open this industry's details
Validate
Available projections depend on width and model. Fabric availability can vary by collection, motor and lighting options may require particular cassette types, and mounting must match the defined installation surface.
Visualize
The awning can open and close, show fabric scale and direction, change cassette and frame finishes and present a credible shadow without implying engineering approval from the image alone.
Calculate
Model and size matrix, fabric group, motorization, sensors, lighting, brackets, delivery and installation form the commercial result.
Customer action
Add to an ecommerce basket for standard products or request a survey and quote for made-to-measure installation.
Business output
Selected model, dimensions, fabric code, motor and accessory package, calculated price and a visual reference for the customer and installer.
Boundary test
Choose the largest projection, then reduce the width below its permitted range. The interface should guide the buyer to a valid projection or another awning family.
Explore this product guide
3D double door with four rectangular panels on each leaf, a blue-gray frame and dark lever handles.

Building products

Entrance door configurator

Opening size, frame and slab system, handing, sidelights, transom, panel design, inside and outside finish, glazing, handle, lock, threshold and installation package.

Open this industry's details
Validate
Overall sizes, leaf ratios, glass panels, hardware, fire or security classifications and threshold options depend on the selected construction and market requirements.
Visualize
Inside and outside views should show handing, panel layout, glazing, hardware and finish as one door set, with dimensions that follow the configured opening.
Calculate
System, dimensions, panels, glazing, hardware, finish, security package, survey, delivery and installation can be combined with dealer or retail price lists.
Customer action
Save a door design, request a measured quotation, send it to a dealer or proceed to checkout where the catalogue supports direct ecommerce.
Business output
Structured door set, opening dimensions, finish and hardware codes, price, branded proposal and optional configured-order data.
Boundary test
Reverse the handing after selecting a side panel and pull handle. Confirm the elevation, hardware position, saved description and production-facing fields remain consistent.
Explore this product guide

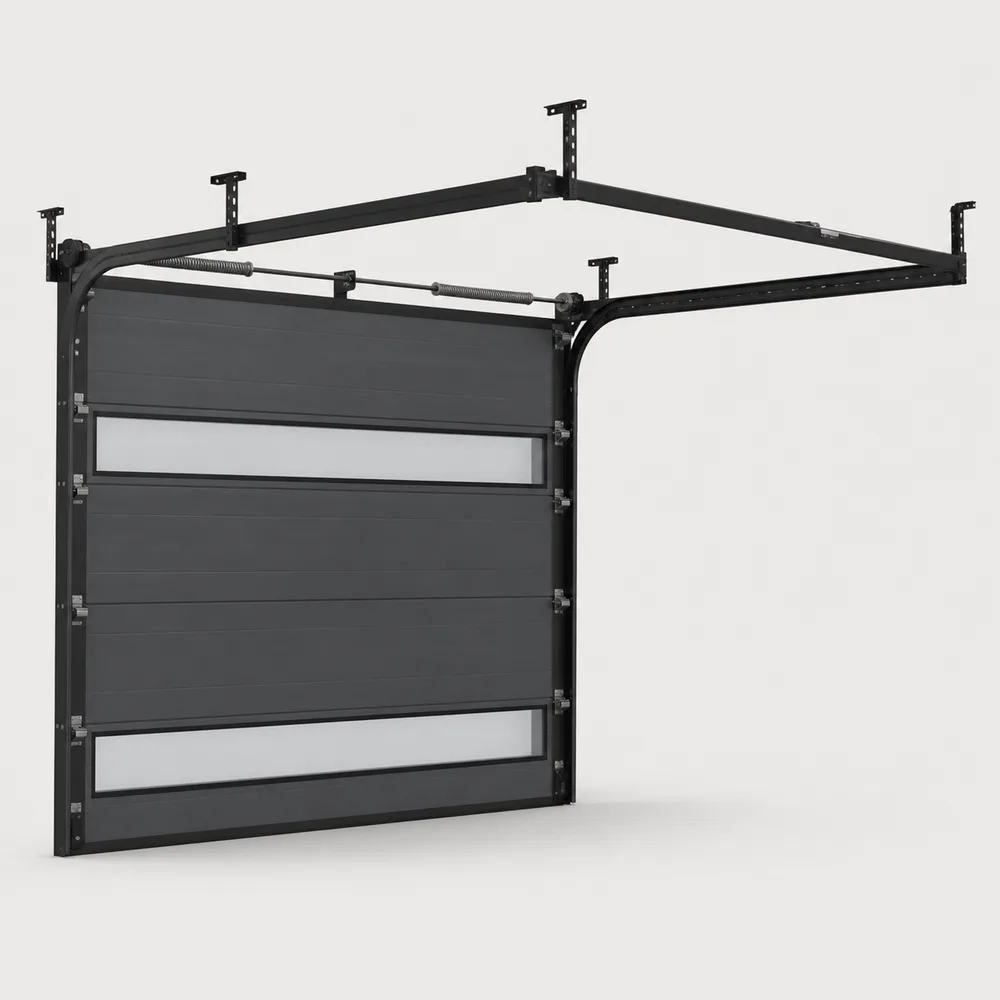

3D sectional garage door with dark panels, tracks and glazed sections.

Building products

Garage and industrial door configurator

Door family, opening width and height, headroom, left and right sideroom, reveal, depth, panel build, finish, windows, wicket door, track or lift system, motor, controls, access and safety equipment.

Open this industry's details
Validate
Available door and track systems depend on opening geometry, roof condition, panel weight, lift height and use. Wicket doors, glazing, motors, springs, controls and safety devices must remain compatible with the selected system and market.
Visualize
Inside and outside views should show the correct panel count, track geometry, lift package, window or full-vision layout, wicket door, operator and clearances while dimensions remain connected to the saved door.
Calculate
Door family, opening size, panel construction, track package, springs, finish, glazing, wicket door, motor, controls, safety equipment, survey, removal, delivery and installation can follow retail or account price rules.
Customer action
Save the door, request a measured survey, create a dealer quote, submit it for technical review or pass an accepted configuration to the defined order workflow.
Business output
Structured opening and door specification, track and automation package, calculated price, branded quote, technical views and optional configured-order, BOM, spare-parts or service data.
Boundary test
Reduce the available headroom after selecting a standard track and ceiling-mounted operator. The configurator should revalidate the lift package, motor position, clearances, price and order fields rather than leaving the original hardware attached.
Explore this product guide

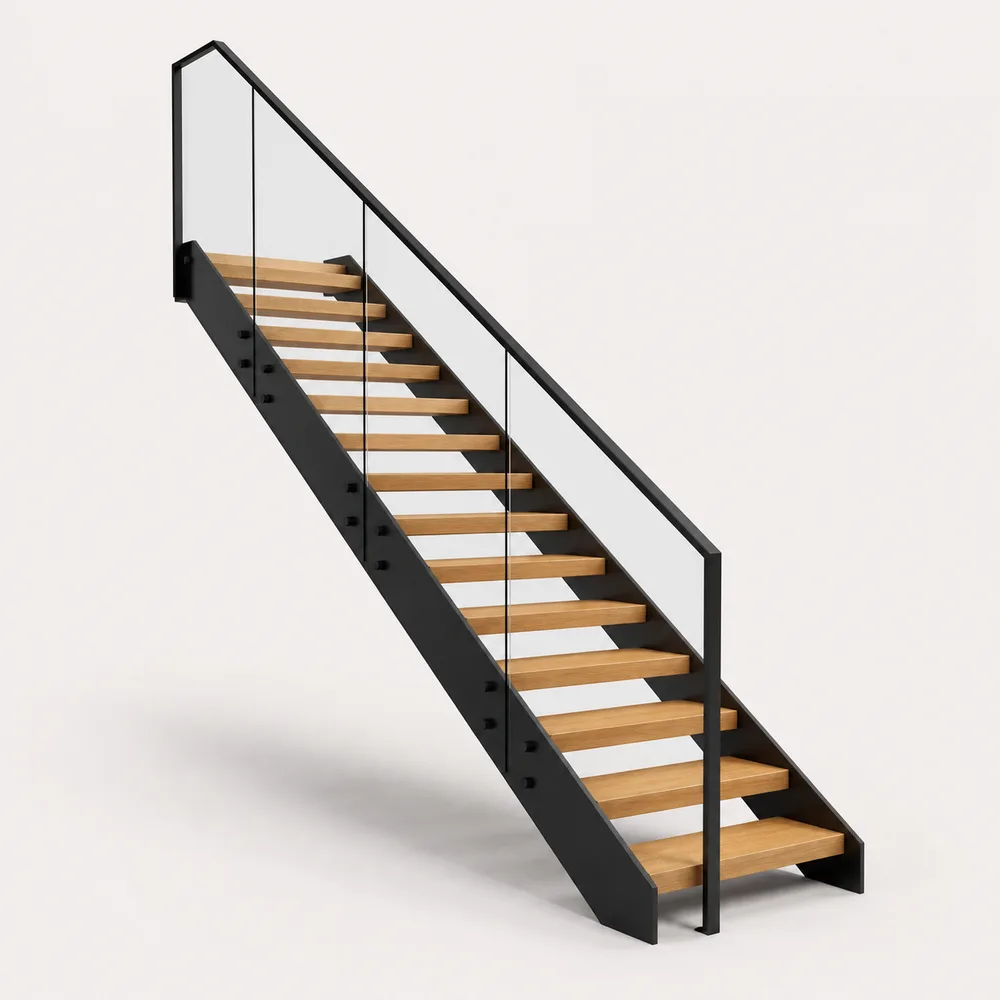

3D steel-and-oak staircase with a glass balustrade.

Building products

Staircase and balustrade configurator

Floor-to-floor height, stairwell length and width, upper-floor opening, flight arrangement, rise count, going, pitch, winders, landings, stringers, treads, risers, supports, balustrades, handrails, materials and finishes.

Open this industry's details
Validate
The selected stair family must fit the available opening and construction system. Rise, going, pitch, walk line, headroom, landings, string intersections, tread support, post spacing, guarding and handrail transitions follow the manufacturer's accepted limits and review conditions.
Visualize
The model should show the correct flight geometry, turns, winders or landings, string and tread construction, open or closed risers, balustrade runs, upper-floor guarding and material selections from useful plan, elevation and three-quarter views.
Calculate
Stair family, flight and step counts, strings, treads, risers, landings, supports, balustrade length, posts, glass or infill, handrails, materials, finishes, survey, delivery and installation can use retail or dealer account rules.
Customer action
Save the staircase, request a measured survey, create a visual quote, submit the geometry for technical review or pass an accepted specification to the defined order and production-review workflow.
Business output
Structured stairwell and staircase geometry, selected construction and finishes, calculated price, branded quote, plans or elevations and optional BOM, cut-list, CAD, CAM, CNC, ERP or configured-order data defined and accepted in scope.
Boundary test
Shorten the upper-floor opening after configuring a quarter-turn winder stair and glass balustrade. The configurator should revalidate run, rise, going, headroom, walk line, guarding, price and downstream data instead of leaving an impossible stair unchanged.
Explore this product guide
3D coordinated dark fence panels and a matching entrance gate.

Fences and gates

Fence and automated gate configurator

Run lengths, heights, corners, slopes, panel family, infill, posts, pedestrian gate, sliding or swing vehicle gate, motor, access control and finish.

Open this industry's details
Validate
Panel counts follow measured runs and post spacing. Corners, gradients, gate clearances, opening direction, motor position and safety accessories affect the valid layout.
Visualize
A plan and 3D view should communicate the whole boundary, not only one sample panel. Gates should open in the correct direction and respect the available site space.
Calculate
Panels, cut panels, posts, corners, gates, motors, controls, foundations, delivery and installation can be calculated from quantity and site rules.
Customer action
Submit the property layout, request a site survey or generate a proposal that separates products, automation and installation.
Business output
Run-by-run quantities, gate specification, hardware and automation choices, price, plan snapshot and optional parts or order structure.
Boundary test
Shorten a boundary after placing a gate. The panel count, cut condition, post positions, quantity price and plan should recalculate without duplicating components.
Explore this product guide
3D front corner view of an enclosed anthracite garden room.

Enclosed and modular rooms

Garden room configurator

Footprint, height, wall modules, cladding, insulation package, roof, doors, windows, internal partitions, electrical package, heating, floor and foundation.

Open this industry's details
Validate
Openings occupy valid wall modules, corners and structural zones remain clear, packages depend on room use and location, and roof or foundation choices follow the selected building system.
Visualize
Exterior and interior views should update openings, wall layout, finishes and room arrangement. Cutaway or plan views can make internal choices understandable.
Calculate
Building size, module counts, envelope, openings, interior packages, services, foundation, delivery access and installation drive the result.
Customer action
Save a concept, qualify planning and access questions, request a detailed quote or pass a complete project to a design consultant.
Business output
Module layout, openings, room package, finish schedule, price, project assumptions, proposal imagery and optional order or BOM structure.
Boundary test
Add a wide sliding door, then shorten that wall. The system should protect corners and structure, identify the conflict and propose valid opening sizes or layouts.
Explore this product guide
3D double-bay carport with a solid roof and an enclosed storage section.

Outdoor structures

Carport and solar canopy configurator

Single or multi-bay layout, width, length, height, roof type, posts, gutters, side screens, storage, frame finish, photovoltaic modules, charging and lighting.

Open this industry's details
Validate
Bay spans, post positions, roof modules, drainage, vehicle clearances and optional solar or charging components depend on the chosen structural and electrical package.
Visualize
The model should communicate parking clearance, bay count, roof coverage, post location and attached options from useful drive-in and elevated views.
Calculate
Structure, bay count, roof, finish, screens, storage, solar equipment, electrical accessories, foundations, delivery and installation can be priced as connected groups.
Customer action
Request a survey or engineering review, save the design for a commercial site or create an indicative proposal with defined assumptions.
Business output
Layout and dimensions, structure and roof selection, accessory and electrical packages, price, proposal and optional technical-handoff fields.
Boundary test
Change a two-bay carport to three bays after adding storage and charging. Shared posts, roof modules, electrical quantities and price should update without carrying obsolete parts.
Explore this product guide
3D solar installation with roof arrays, a solar canopy, battery cabinets and EV charging.

Solar energy

Solar system and proposal configurator

Roof, ground or canopy zones, module family, mounting package, inverter, optimizer, monitoring, battery storage, backup, EV charging, survey, services and commercial options.

Open this industry's details
Validate
Modules, mounting systems, inverters, storage and electrical accessories must follow approved compatibility, quantity, market and review conditions. Imported yield or financial results retain their source and assumptions.
Visualize
A 3D site view can communicate array coverage, excluded zones, module orientation and equipment placement without presenting the layout as structural, electrical or grid-connection approval.
Calculate
Equipment, mounting, access, survey, design, permits, freight, labour, installation, commissioning and service can use installer or account-specific commercial rules.
Customer action
Save the project, request a survey, create a proposal or submit the selected system and assumptions for technical review.
Business output
Versioned site and equipment record, visual layout, commercial calculation, proposal, source and assumption fields, review status and optional BOM or order payload.
Boundary test
Replace the module family after laying out a constrained roof zone. Module dimensions, quantity, mounting and inverter compatibility, price and imported analysis status should all be revalidated rather than stretched visually.
Explore this product guide

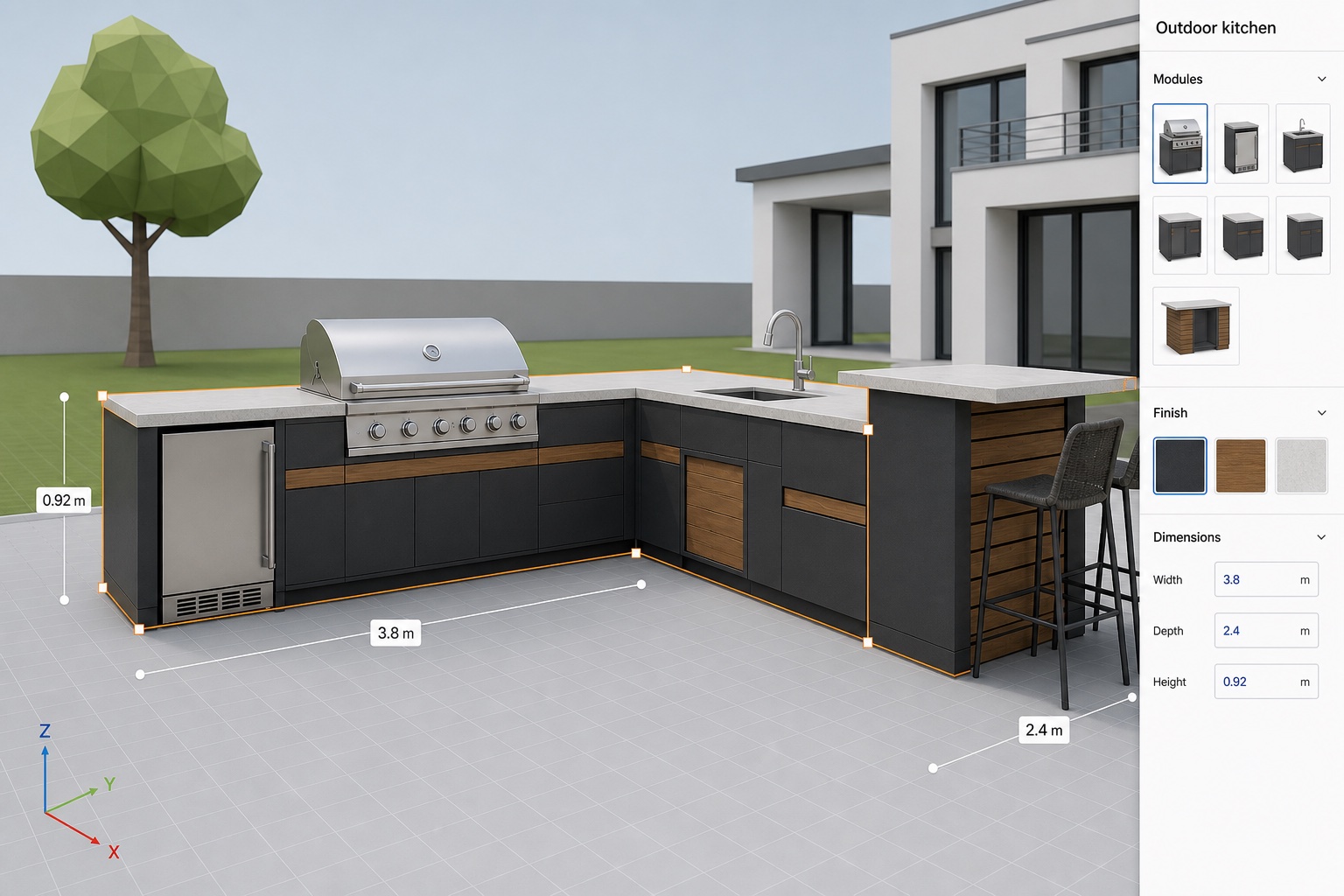

3D modular outdoor kitchen with cabinets, worktop and cooking equipment.

Furniture and kitchens

Outdoor kitchen configurator

Straight, L-shaped or island layout, cabinet modules, worktop, grill, sink, fridge, storage, end panels, handles, finishes, utilities and delivery or installation.

Open this industry's details
Validate
Appliances require compatible modules and clearances. Corners, fillers, end panels, worktop seams, gas, water and electrical requirements follow the selected layout.
Visualize
Modules should snap into a valid run, appliances occupy the correct openings and worktops and end panels regenerate as the layout changes.
Calculate
Cabinet modules, fronts, worktop area and cut-outs, appliances, fillers, utilities, delivery and installation roll into a line-level total.
Customer action
Save the layout, request a design review, buy standard packages or send a complete brief to a showroom consultant.
Business output
Module sequence, dimensions, finishes, appliance list, worktop details, price, quote imagery and optional order lines.
Boundary test
Remove the sink cabinet after selecting a sink and tap. The dependent products and cut-out should be removed or reassigned with a clear explanation.
Explore this product guide

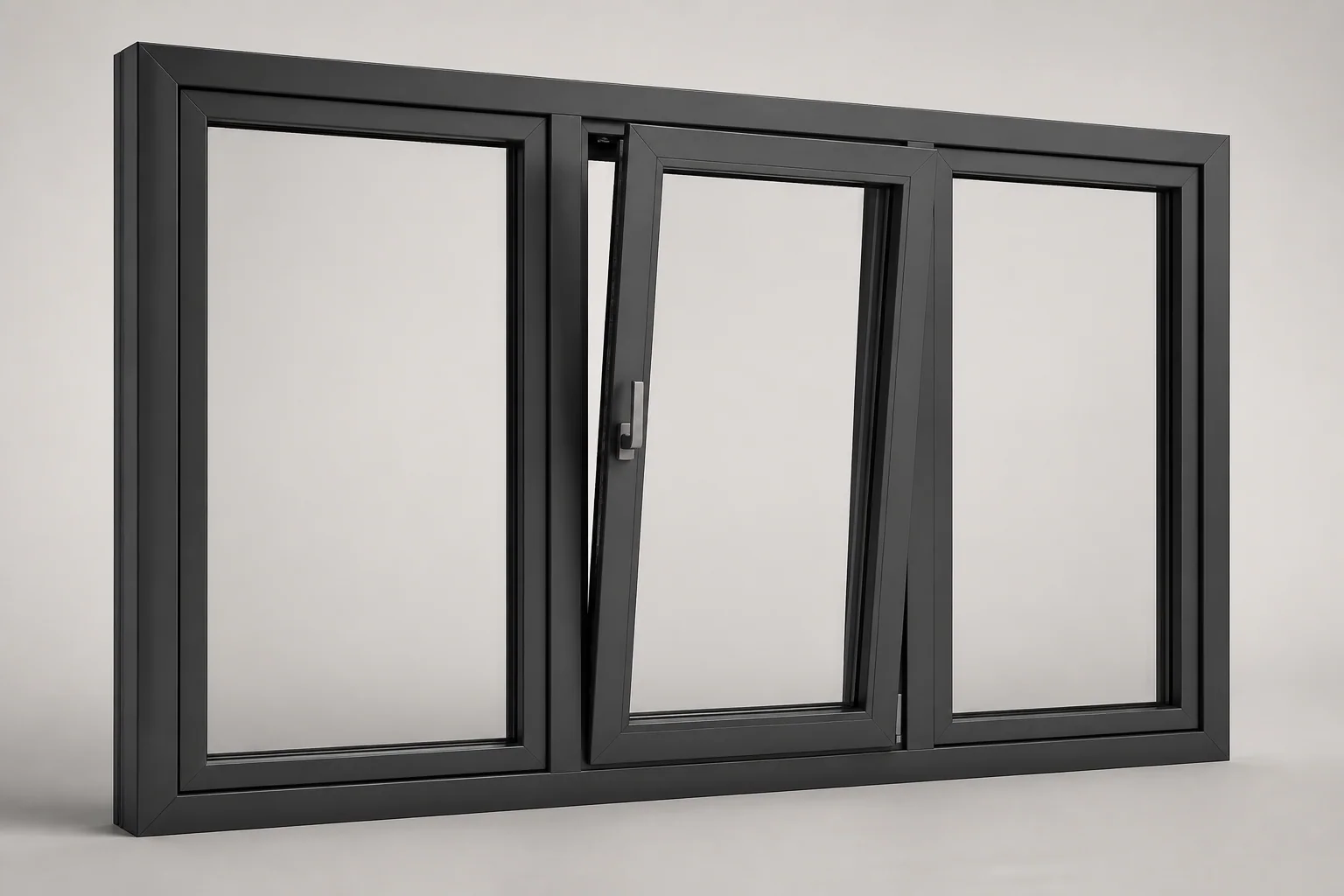

3D dark aluminum window frame and glazed opening sections.

Building products

Window and shutter configurator

Opening dimensions, frame system, sash layout, opening direction, glazing, mullions, colour, hardware, sill, screen, shutter and installation condition.

Open this industry's details
Validate
Maximum sash sizes, aspect ratios, glass make-up, hardware, ventilation and safety options vary by system, opening type and market.
Visualize
Elevations should show sash divisions and opening behavior from inside and outside, while sections or detail views can explain frame and sill choices.
Calculate
Frame perimeter or area, sash and mullion counts, glass, colour, hardware, accessories, survey, delivery and installation contribute to price.
Customer action
Build a schedule room by room, request measured pricing or submit a project to a dealer or fabricator.
Business output
Numbered window schedule, opening sizes, system and glazing codes, hardware, quantities, prices, proposal and optional order data.
Boundary test
Change a large tilt-and-turn sash to a narrower opening. The system should revalidate hardware and glass, update the elevation and preserve the correct schedule item.
Explore this product guide

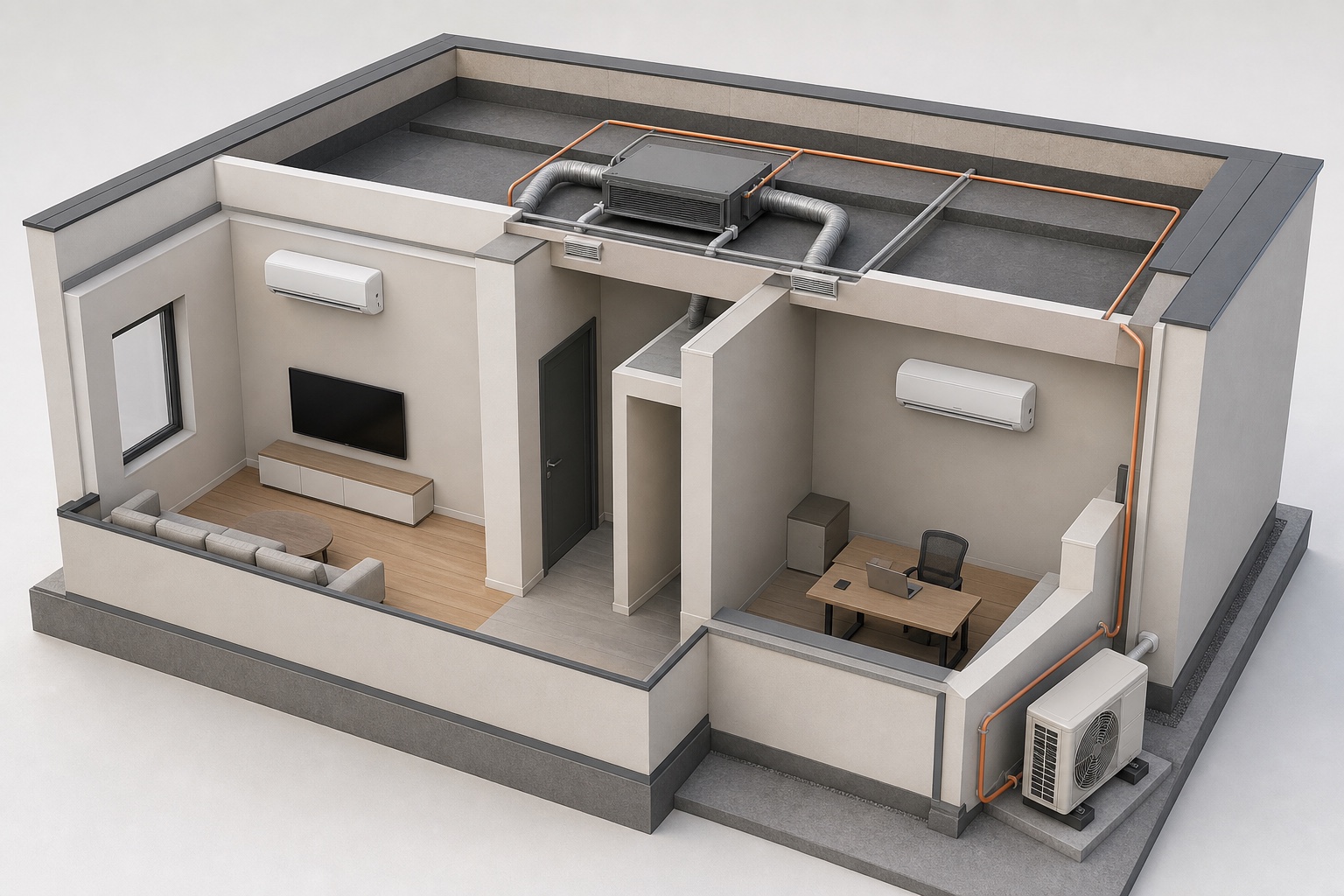

3D cutaway showing indoor air-conditioning units and outdoor equipment.

HVAC systems

HVAC enclosure and system configurator

Equipment family, capacity range, unit dimensions, enclosure size, panels, access doors, louvres, finish, base, acoustic treatment and service clearances.

Open this industry's details
Validate
The selected unit needs defined airflow, access and maintenance clearances. Enclosure modules, panels, doors and acoustic options must remain compatible with equipment and site dimensions.
Visualize
Transparent, cutaway or isolated views can show the equipment, airflow openings and access zones without presenting the visual as a substitute for technical approval.
Calculate
Equipment or enclosure model, dimensions, panel and door quantities, finish, acoustic package, controls, delivery and installation can form a project price.
Customer action
Submit for technical review, create a sales proposal or export the selected enclosure and equipment references to the project workflow.
Business output
Equipment and enclosure specification, clearances, panels and accessories, price, drawings or images and optional order or BOM fields.
Boundary test
Select a larger unit after configuring the enclosure. The system should recheck airflow and access clearances and identify every enclosure dimension or module that must change.
Explore this product guide
3D white-and-oak modular wardrobe with shelves, drawers, open doors and a desk.

Furniture and kitchens

Modular furniture, wardrobe and cabinet configurator

Available wall or room dimensions, module widths, heights and depths, doors, drawers, shelves, internal fittings, handles, finishes, lighting and installation.

Open this industry's details
Validate
Modules must fit the available run, fillers and end panels close gaps, doors need opening clearance and internal accessories depend on compatible cabinet sizes.
Visualize
The configured run should fill the measured space, show doors or drawers open, preserve realistic material scale and make internal fittings inspectable.
Calculate
Cabinet modules, fronts, internal fittings, finish groups, panels, fillers, lighting, delivery and installation produce the total.
Customer action
Purchase a standard modular arrangement, save a room design or request a checked made-to-measure proposal.
Business output
Ordered module sequence, dimensional layout, finish and hardware selections, price, visual summary and optional part or order list.
Boundary test
Reduce the available wall width by a small amount. The configurator should identify whether a filler can absorb it or which module must change, rather than overlapping geometry.
Explore this product guide
3D white-and-oak fitted kitchen with tall cabinets and an island.

Furniture and kitchens

Fitted kitchen and cabinet-run configurator

Room walls and openings, straight, L-shaped, U-shaped or island layout, base, wall and tall cabinets, corners, fillers, panels, worktops, appliances, sinks, fronts, handles, finishes and installation services.

Open this industry's details
Validate
Cabinets must fit the measured runs and selected range. Corners, neighbours, fillers, panels, plinths, worktop seams, appliance housings, ventilation, cut-outs and service zones remain compatible.
Visualize
The room and complete kitchen should update together, with accurate cabinet proportions, continuous worktops, correct appliance positions, useful opening views and realistic material scale.
Calculate
Cabinets, dimensional adjustments, fronts, interiors, panels, worktops, cut-outs, appliances, delivery, survey and installation can follow retail or dealer account rules.
Customer action
Save the room and design, request a consultation, create a branded quote, continue to checkout for accepted ranges or submit the project for survey and technical review.
Business output
Structured room and cabinet layout, finishes, appliances, worktop details, calculated price, branded proposal and optional BOM, cut-list or configured-order data defined in scope.
Boundary test
Shorten a wall after placing a corner, appliance housing and continuous worktop. The system should revalidate the cabinet run, fillers, seams, cut-outs, price and downstream data rather than overlapping or stretching components.
Explore this product guide
3D industrial line with conveyors, guarded machinery, robotic cell and a raised service platform.

Industrial manufacturing

Industrial equipment configurator

Equipment family, duty, capacity, dimensions, modules, drive or control package, guards, connections, accessories, finish, documentation and service package.

Open this industry's details
Validate
Performance ranges, interfaces, required components, incompatible options, regional electrical packages and review conditions must be explicit and versioned.
Visualize
An assembled 3D model can explain modules, access, connections and footprint. Technical data and review status remain separate from visual confidence.
Calculate
Base equipment, configured modules, engineering options, controls, documentation, commissioning, freight and service can follow account and market rules.
Customer action
Create a budget quote, submit the configuration for engineering review or pass an approved project into CRM, ERP or order processing.
Business output
Versioned product specification, selected components, commercial calculation, proposal, approval status and optional configured-order or BOM payload.
Boundary test
Remove a required guarding or control module from a multi-station line. The system should block or explain the incomplete configuration, preserve the application inputs and update price and downstream data consistently.
Explore this product guide
3D sunroom with gray frames, glazed sides, a front door and a solid roof, seen from the front right.

Enclosed and modular rooms

Sunroom and enclosed-room configurator

Choose footprint, roof system, frame finish, glazed and solid panels, door positions and openings from your catalogue.

Open this industry's details
Validate
Keep panel widths, opening geometry, roof connection and structural limits consistent with the selected building system.
Visualize
Show all elevations, the roof and panel divisions together so the buyer can inspect the whole enclosed room.
Calculate
Combine frame and panel quantities, glazing, roof, doors, finishes, survey, delivery and installation under your price rules.
Customer action
Save the room specification and request a survey, quotation or technical review.
Business output
A versioned room layout, panel and door references, selected materials, quote and agreed order or materials data.
Boundary test
Move a door after narrowing a side elevation. Recheck the available panels, openings, quantities, price and saved specification.
Explore this product guide

Custom software for manufacturers

A configurator up front. Your business connected behind it.

We specialize in complex, configurable and made-to-order products. We build custom software around your catalogue, calculations, permissions, sales process and factory workflows.

Custom software around your products

Your catalogue determines the available options, technical checks, calculations and outputs. We agree and test the configurator, custom software and each connection around your products and teams.

CRM and qualified leads

Capture the selected product, dimensions and options with each enquiry. Qualify by product fit, project requirements and commercial readiness, then assign the next action to the right salesperson.

Configurix workspaceQuote revision

New enquiry

3D product configurator examples

Product fit

Qualified

3D product configurator examples

Requirements

Proposal

3D product configurator examples

Next action

Calendars and appointments

Let a configured project continue into a sales consultation, technical review, survey or installation appointment. Connect calendars, responsibilities and reminders to the same customer record.

Configurix workspaceQuote revision
  • 09:00Project review
  • 11:30Technical review
  • 14:00Production planning

Bill of materials and factory data

Map product selections to component codes, quantities, materials and cut lengths. Build the sales or manufacturing BOM your team needs, with revisions and production review rules defined for your products.

Configurix workspaceQuote revision
Bill of materials and factory data
ComponentQuantity
FRM-01Configured components1
PNL-02Materials and quantities1
KIT-03Agreed operations1

Mapped to your product codes

Live prices and branded quotes

Apply your own formulas, price lists, dealer margins and approval rules. Generate a quote containing the saved specification, product images, commercial terms and a clear customer approval step.

Configurix workspaceQuote revision

Quote revision

Your catalogue
Options
Services
Your price rulesBranded PDF

Orders, jobs and production

Carry accepted choices into order lines and assigned jobs. Keep product revisions, required approvals, documents and delivery tasks together so sales and the factory work from the same specification.

Configurix workspaceQuote revision
  1. Accepted quote01
  2. Configured order02
  3. Production job03
  4. Installation04

Invoicing and accounting

Connect accepted orders to deposits, invoice drafts, payment terms and your accounting workflow. Agree which system issues the invoice and how references and confirmed payment status return to the project.

Configurix workspaceQuote revision
Draft invoice

3D product configurator examples

Order reference3D product configurator examples
Customer—
Payment terms—
Accounting handoff

Built for your website. Connected to your systems.

Launch a branded configurator in your existing website or a custom sales portal. Connect CRM, ERP, PIM, ecommerce, calendars and accounting through available APIs, webhooks or agreed imports. We define the data, permissions and responsibilities for each connection with your team.

  1. 01Your website
  2. 02Configurator
  3. 03CRM & calendar
  4. 04ERP & accounting

Choose the workflows your implementation needs. We build and validate them against your products, documents and target systems.

Discuss your product

Turn an example into your working process.

Start with a representative product

Choose a product that exposes the real difficulty: meaningful dimensions, dependent options, a known calculation and a useful output. Include normal, minimum, maximum and invalid cases. A broad gallery is less useful than a product your team can verify.

Prepare the catalogue and visual assets

Provide product families, stable option and material codes, supported dimensions, drawings or 3D models and approved finishes. Define which choices alter geometry, visibility, materials or camera views. Keep visual asset revisions connected to the product definition.

Agree pricing and quotation ownership

Identify the price source, dimensional formulas, quantities, account conditions, taxes, currency, discounts and approvals. Test expected line-level results. Keep an issued quotation connected to its accepted product and pricing revision when the customer returns or changes a selection.

Define useful materials and factory outputs

A sales BOM, configured order, manufacturing BOM and cut list serve different purposes. Agree component codes, quantities, units, revisions, allowances, work operations and engineering approval before connecting the output to production. The receiving team must recognize and accept the data.

Build custom business software around the product

Configurix can build the qualification, CRM, calendar, appointment, quoting, order, job and invoice workflow you need. Keep customer ownership, product revisions and documents connected. Scope existing CRM, ERP, PIM, commerce or accounting connections around available APIs, permissions and responsibilities.

Test the complete native buyer journey

Test selection, rules, 3D, price, saved record, quote and handoff on real phones and tablets. Include local terminology, numbers, units, currency, documents and validation messages. Agree how catalogue changes, invalid inputs, integration failures and older saved projects are handled after launch.

Your product. Your rules. Your connected software.

Bring your catalogue, options, materials, calculation and required documents. We will define the configurator, business or factory software and acceptance cases with your team.

Tell us about your business

Step 1 of 2 — your details, then pick a time.

2 min

By submitting you agree to be contacted about Configurix. We respect your privacy.

3D configurator questions

Primary technical documentation

These references cover product configuration, 3D delivery and public product content. They support different layers; your implementation still needs product-specific rules and acceptance tests.

Detailed technical reference

What the examples prove

The picture is only one layer.

A 3D product configurator helps a customer, salesperson or dealer define a product through controlled choices. The visible model makes those choices understandable, while the product record preserves dimensions, components, materials, quantities and other data needed by the next step.

That distinction separates configuration from decoration. A material switch may be exactly right for a standard ecommerce product. A made-to-measure pergola, window or industrial assembly needs rules that prevent impossible combinations. A complex sales journey may also need live pricing, a branded quote, approval and structured handoff.

Use the examples below as requirement blueprints. They describe common patterns, not fixed templates or published customer deployments. Every implementation should be validated against the real catalogue, calculations, roles, documents and operational output included in scope.

Choose the right depth

Four experiences are often called a product configurator.

Start with the job the user must finish and the data the business must receive. More complexity is useful only when it removes a real decision, error or handoff problem.

Level 1

Visual customizer

Changes visible finishes, colours or prepared components on a standard product. It helps a buyer understand choice, but may not validate a made-to-measure product or calculate a commercial result.

Typical output

Selected variant or shopping-cart choice

Level 2

Interactive 3D viewer

Adds rotation, zoom, hotspots, animation or optional AR to a prepared model. It is useful for product education when the buyer is inspecting rather than defining the product.

Typical output

Product engagement or enquiry

Level 3

Rule-driven configurator

Creates a permitted product from dimensions, structures, modules, materials, accessories, dependencies and exclusions. The saved result is structured data, not only a picture.

Typical output

Valid saved specification

Level 4

Visual CPQ workflow

Connects the valid configuration to price lists, formulas, account rules, quote documents, approvals, revisions and handoff to the next sales or operational system.

Typical output

Configured, priced and traceable project

One record, different journeys

The interface changes. Product truth should not.

Website self-service

A visitor discovers the product, configures it on desktop or mobile, sees permitted choices and price where appropriate, then saves, buys or submits a structured enquiry.

Showroom and sales

A salesperson configures with the customer, compares valid alternatives, applies permitted commercial rules and creates a branded proposal from the selected product.

Dealer and distributor

Authenticated partners use assigned products, account or market price lists, controlled discounts, co-branded documents and a shared project history.

Order and operations

An accepted configuration can provide stable identifiers, quantities, dimensions and revision context to the agreed CRM, ERP, ecommerce, BOM or order workflow.

Implementation data

What turns an example into your working configurator.

A product render is a starting asset. A working system also needs controlled source data, named ownership and accepted results.

1

Product catalogue

Product families, systems, sellable modules, options, accessories, identifiers and lifecycle status.

2

Rules and limits

Dimensions, increments, dependencies, exclusions, required choices, formulas, review conditions and accepted boundary cases.

3

3D source

CAD, models, drawings, material references, component hierarchy, approved views and device-performance requirements.

4

Commercial logic

Price lists, quantities, formulas, labour, delivery, installation, tax, currency, discounts, margins and approval permissions.

5

Customer journey

Website, showroom, salesperson, dealer or ecommerce roles; save, quote, checkout, AR, consent and communication steps.

6

Business output

Project fields, PDF, quote, CRM, ERP, ecommerce, PIM, BOM, order, API or webhook data and failure handling.

7

Governance

Who can change products, prices, translations, documents and users; environments, review, publishing, history and support.

8

Acceptance

Normal, minimum, maximum, incompatible, price, revision, role, mobile, integration and post-launch change scenarios.

Prototype selection

Start with one product that reveals the real difficulty.

A strong prototype is small enough to review quickly and representative enough to expose the important product, price and output questions.

Representative product

Choose a frequently sold product with meaningful variation—not only the simplest SKU or the rarest special case.

Known rules

Include dimensions, one dependency, one exclusion, one required option and the expected response at lower and upper boundaries.

Known price

Supply a calculation with source values and expected line-level result, including quantity, tax, rounding and permissions where relevant.

Useful visual change

Select geometry, component and material changes that help the user decide, rather than optimizing only for a dramatic animation.

Real next action

Define whether the user should buy, save, request a quote, invite a salesperson, seek approval or submit for technical review.

Required business output

Name the quote fields, CRM project, ecommerce line, ERP payload, BOM or configured order structure that must be observable.
